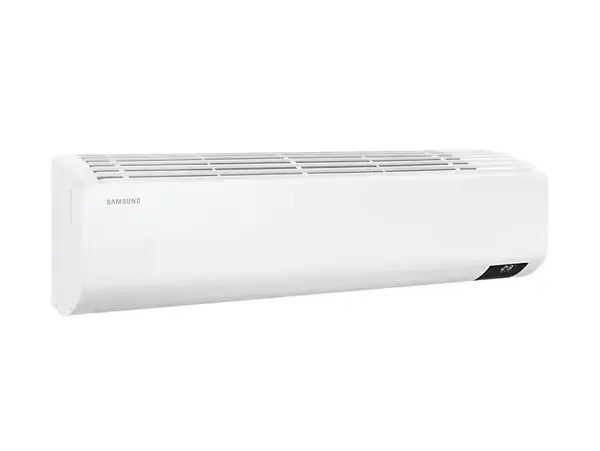

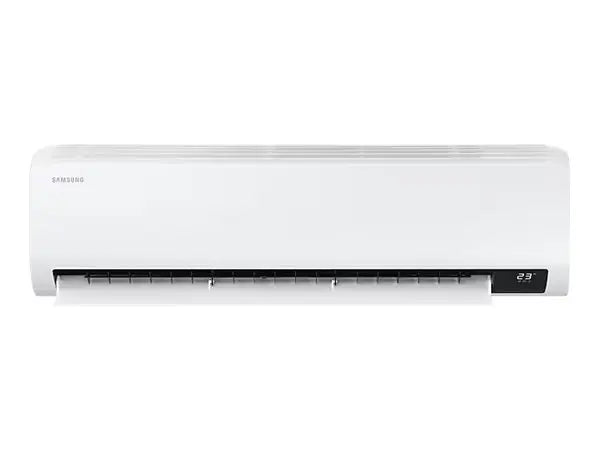

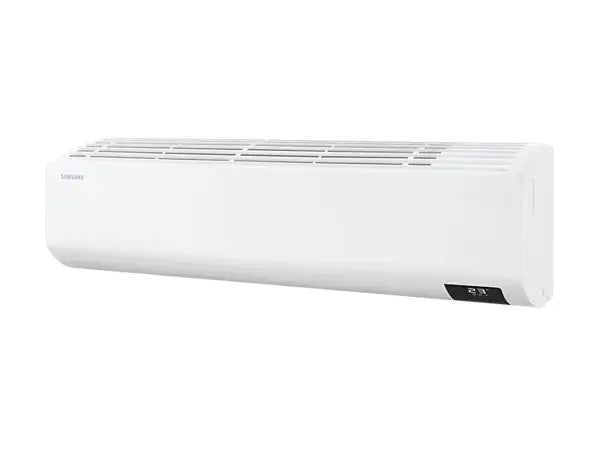

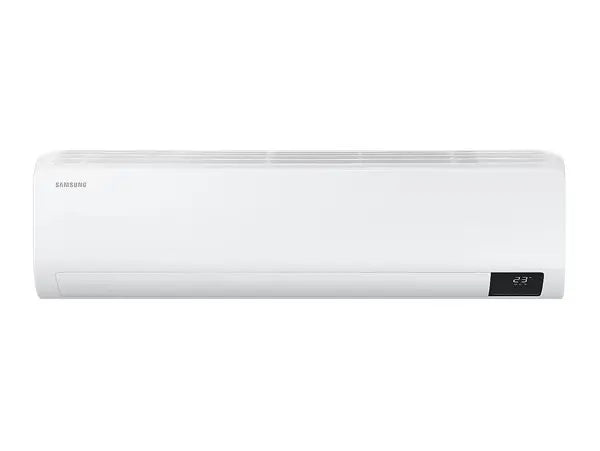

Samsung 2 Ton AR24TVFZJWK Wall-mount AC with Digital Inverter and Auto Clean

Capacity

• Capacity (Cooling, Btu/hr): 21500‎
• Capacity (Cooling, Min - Max, Btu/hr): 5,450 ~ 24,500‎
• Capacity (Cooling, kW): 6.30‎
• Capacity (Cooling, Min - Max, kW): 1.6 ~ 7.18‎

Energy Efficiency

• EER (Cooling, W/W): 3.46‎
• EER (Cooling, Btu/hW): 11.81‎
• Energy Efficiency Class for cooling (Grade): T1 : - / T3 : 1★

Noise Level

• Noise Level (Indoor, High/Low, dBA): 45 / 30‎
• Noise Level (Outdoor, High/Low, dBA): 55‎

Electrical Data

• Power Source (Φ/V/Hz): 1 / 220-240 / 50
• Power Consumption (Cooling, W): 1820‎
• Operating Current (Cooling, A): 8.5‎

Physical Specification

• Gross Dimension (Indoor, WxHxD) (mm): 1115 x 290 x 375‎
• Gross Dimension (Outdoor, WxHxD) (mm): 1023 x 724 x 413‎
• Net Dimension (Indoor, WxHxD) (mm): 1055 x 299 x 215‎
• Net Dimension (Outdoor, WxHxD) (mm): 880 x 638 x 310‎
• Gross Weight (Indoor, kg): 13.2‎
• Gross Weight (Outdoor, kg): 43.1‎
• Net Weight (Indoor, kg): 11.5‎
• Net Weight (Outdoor, kg): 38.1‎
• Loading Quantity (20/40/40Hft without Pipe): 65 / 138 / 154

Technical Information

• Piping Length (Max, m): 30‎
• Piping Height (Max, m): 15‎
• SVC Valve (Liquid (ODxL)): 6.35
• SVC Valve (Gas (ODxL)): 15.88
• Moisture Removal (l/hr): 2.5‎
• Air Circulation (Cooling, ㎥/min): 18.6‎
• Refrigerant (Type): R410A
• Refrigerant (Charging, kg): 0.98‎
• Refrigerant (Charging, tCO2e): 2.05‎
• Low Ambient (Cooling, ℃): 16~52‎
• Outdoor Unit (Compressor Type): BLDC
• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow

• Air Direction Control (Up/Down): Auto
• Air Direction Control (Left/Right): Manual
• Air Flow Control Step (Cool/Fan): 5/4

Air Purification

• PM 1.0 Filter: No
• Tri Care Filter: No
• Easy Filter Plus (Anti-Bacteria): Yes
• Auto Clean (Self Cleaning): Yes

Convenience

• SmartThings: Yes
• AI Auto Cooling: Yes
• Filter Cleaning Indicator: Yes
• Indoor Temp. Display: Yes
• Display On/Off: Yes
• Beep On/Off: Yes
• 24-Hour Timer: Yes
• Auto Restart: Yes

Operating Mode

• Auto Mode: Yes
• Fast Cool: Yes
• Good Sleep: Yes
• Eco Mode: Yes
• Dehumidification: Yes
• Fan Mode: Yes
• Quiet: Yes

Smart

• WiFi Embedded: Yes

App Connectivity

• SmartThings App Support: Yes
